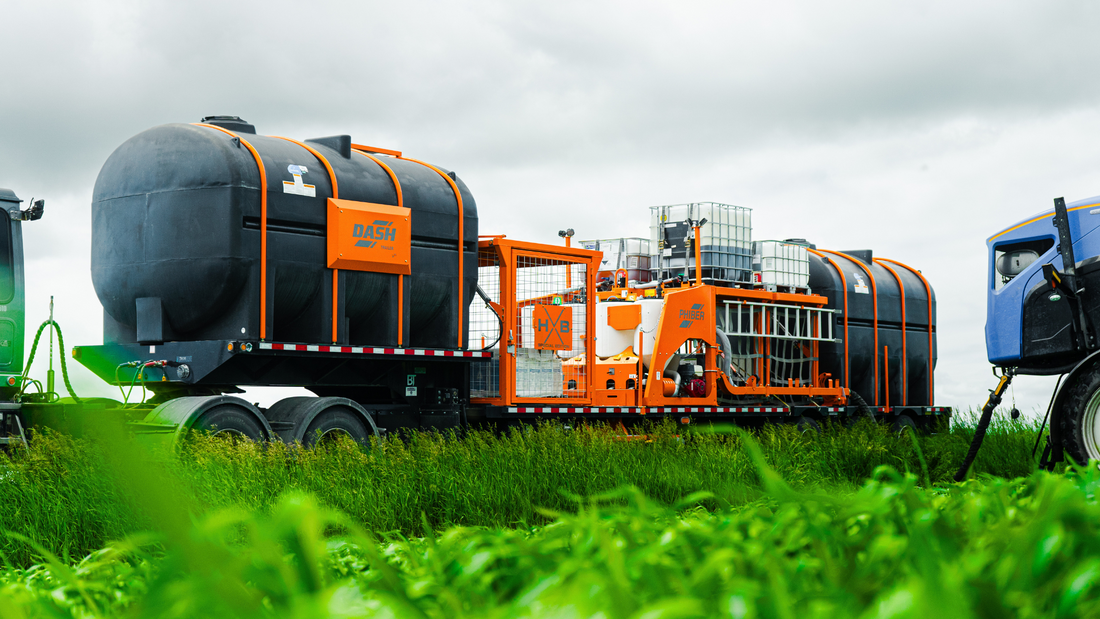

Efficient sprayer loading is crucial for modern agricultural operations, where time and accuracy directly impact productivity. PhiBer Manufacturing's DASH system offers a solution tailored to these needs, providing rapid, precise, and safe chemical mixing and sprayer refilling.
Key Features of the DASH System
Rapid Fill Times
The DASH system is designed to minimize sprayer downtime by enabling swift refills. With its high-capacity pumps and streamlined processes, operators can load a 1,200-gallon sprayer in under four minutes, ensuring more time is spent in the field.
Chemical Separation
To maintain chemical efficacy and prevent cross-contamination, the DASH features separate inductors for each product. This design allows operators to prepare multiple chemicals simultaneously while keeping them isolated until mixing.
Automated Rinsing and Agitation
Equipped with an air-diaphragm pump, the DASH automates the rinsing of inductors and agitates dry chemicals, reducing manual intervention and potential errors. This automation ensures thorough mixing and cleaning, enhancing overall efficiency.
User-Friendly Operation
All controls are centrally located at ground level, allowing operators to manage the entire filling and rinsing process from one spot. This ergonomic design simplifies operations and enhances safety.
DASH Models
PhiBer offers several DASH configurations to cater to diverse operational needs:
- DASH 1.6: This model features a single 75-gallon inductor and is expandable by connecting multiple secondary units, allowing the system to grow alongside your operation.
- DASH 2.6: Designed for flat deck trailers, the 2.6 includes two 75-gallon inductors, totaling 150 gallons of storage. It comes standard with an air-diaphragm pump for auto rinsing and agitation.
- DASH 4.6: Also intended for flat deck trailers, the 4.6 boasts four 75-gallon inductors, providing 300 gallons of total storage. It includes both an air-diaphragm pump and a high-delivery water pump powered by a 13hp motor with electric start.
- DASH 4.6 Rear Mount: This variant is designed for mounting on the back of tankers, flat deck trailers, or grain boxes. It offers the same features as the center mount 4.6 but with a different frame to accommodate various mounting options. Additional features include tail/turn lights, a flip-down work platform, and a license plate holder.
Conclusion
PhiBer Manufacturing's DASH system exemplifies innovation in agricultural equipment, focusing on efficiency, safety, and adaptability. By reducing fill times and ensuring precise chemical handling, the DASH enhances productivity and supports the evolving needs of modern farming operations.
